Braid Annealing Station

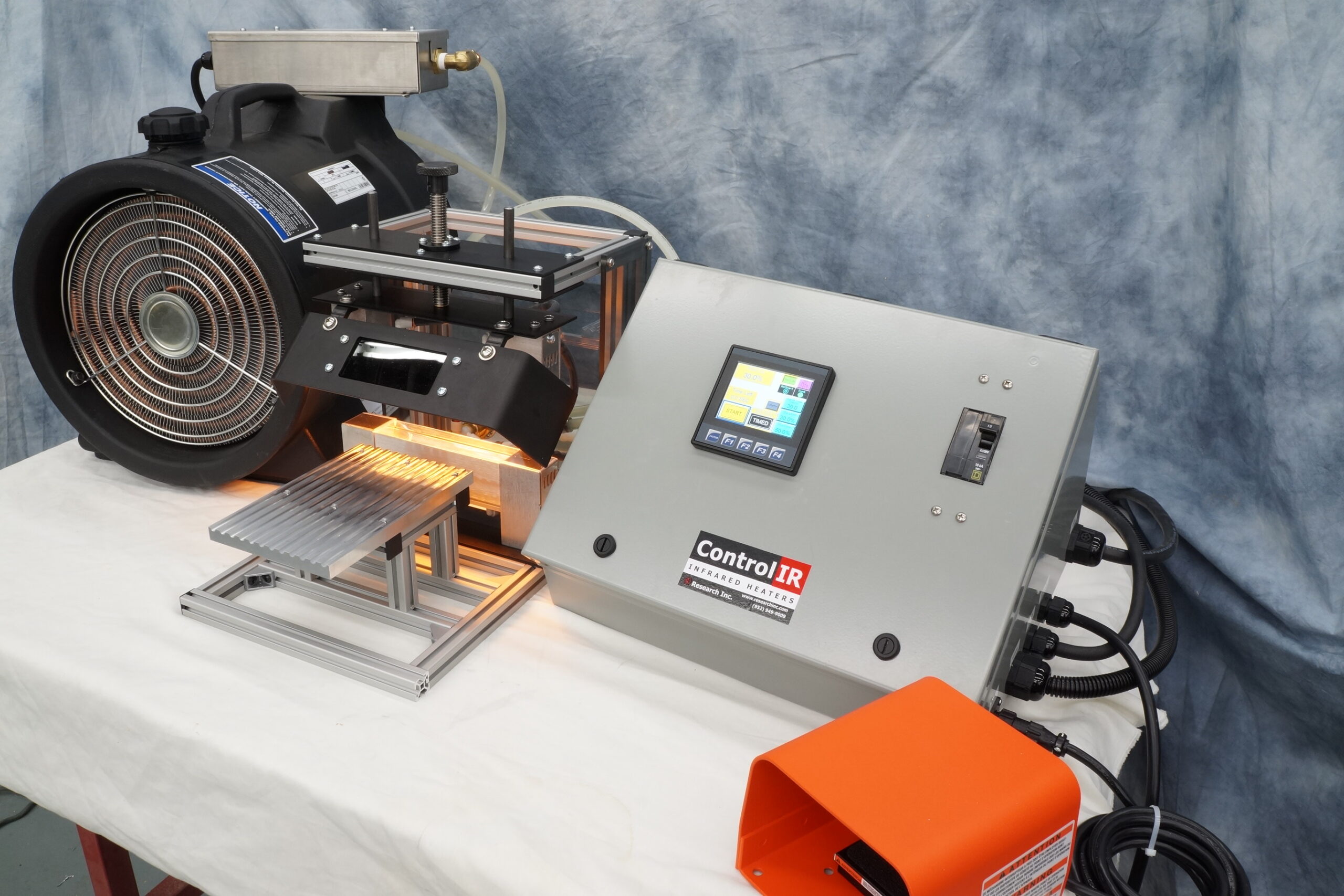

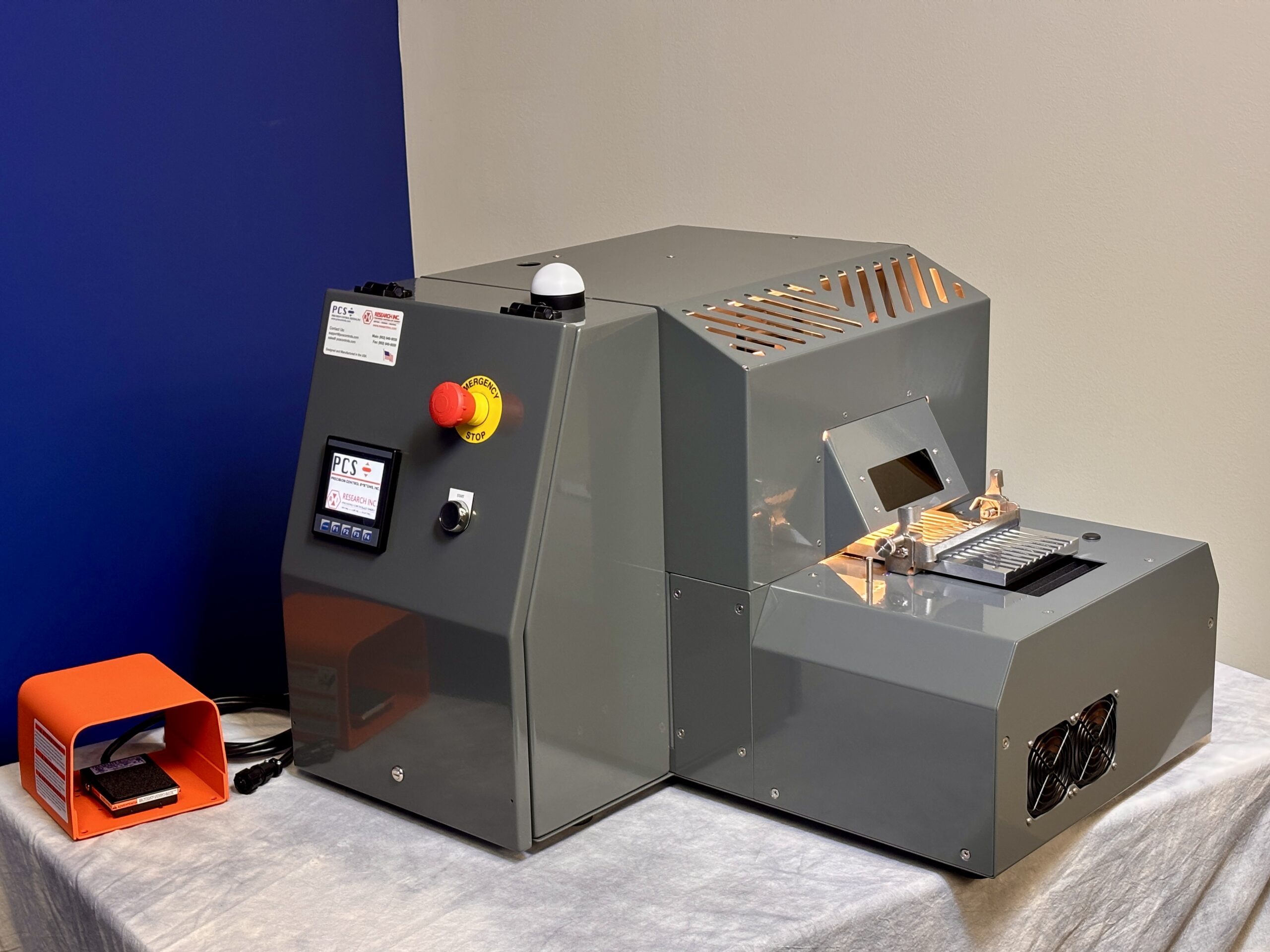

Typically used in the medical device industry, our IR Annealing Station provides high heat flux and custom heated geometries to anneal metal braids and prevent them from unraveling after being cut. The infrared heating system heats from the top and bottom of the braid, with the top heater position being mechanically adjustable, and can achieve product temperatures of 800°C. Part holder can accommodate multiple parts for single cycle processing.

A PLC based control system with color touch screen display provides process status, cycle configuration parameters, and allows for recipe storage.



Typical Applications Include:

  • Annealing Nitinol braid
  • Annealing Stainless Steel braid
