Industrial Infrared Heating Products and SCR Power Controllers

Responsive, Modular Products for Integration Into Industrial Equipment

Precision Control Systems designs and manufactures industrial infrared heater systems, temperature controllers, and SCR power control systems for equipment builders, manufacturers, laboratories, and research facilities. Standard product platforms provide fast response, high power density, and flexible integration for continuous and batch processes. Heater length, wattage, mounting, cooling, and controls can be adapted when a standard configuration does not fully match the equipment.

Product Capabilities

PCS product families address the most common industrial infrared heating arrangements while providing a practical starting point for application-specific modifications:

Chamber and Clamshell Heaters

Water cooled heaters surround tubing, wire, cable, pipe, or other moving products with concentrated infrared energy. Split opening arrangements provide access for threading, startup, and maintenance.

Line, Strip, Spot, and Panel Heaters

Focused line heaters, compact spot heaters, and modular panels provide localized or broad area heating for parts, webs, coatings, laboratory development, and thermal testing.

Temperature and Power Controllers

Benchtop and panel mounted packages range from simple temperature control to multi zone SCR systems with PLC control, recipes, data collection, and plant communication.

Why Engineers Choose PCS Heating Products

Fast Response and High Power Density

 Infrared emitters provide concentrated energy and respond quickly to changes in commanded output, supporting short cycle times and changing production conditions.

Flexible Integration

Modular sizes, mounting options, and air or water cooled designs simplify installation into conveyors, extrusion lines, test stands, laboratory fixtures, and OEM machinery.

Application Appropriate Controls

Controls can be configured for open loop power, voltage, temperature, or other process feedback according to the load and required level of repeatability.

Industrial Construction and Serviceability

Replaceable lamps, protected terminals, rugged housings, and serviceable assemblies support long term use in industrial environments.

Find the Right Infrared Heater for Your Application

The best heater depends on the material, color and surface condition, target temperature, exposure time, line speed, heated area, working distance, atmosphere, and cooling requirements. PCS can review these parameters and recommend a product and control approach before equipment is specified.

Contact our applications team to discuss your process, request product information, or arrange sample testing when the application would benefit from validation.

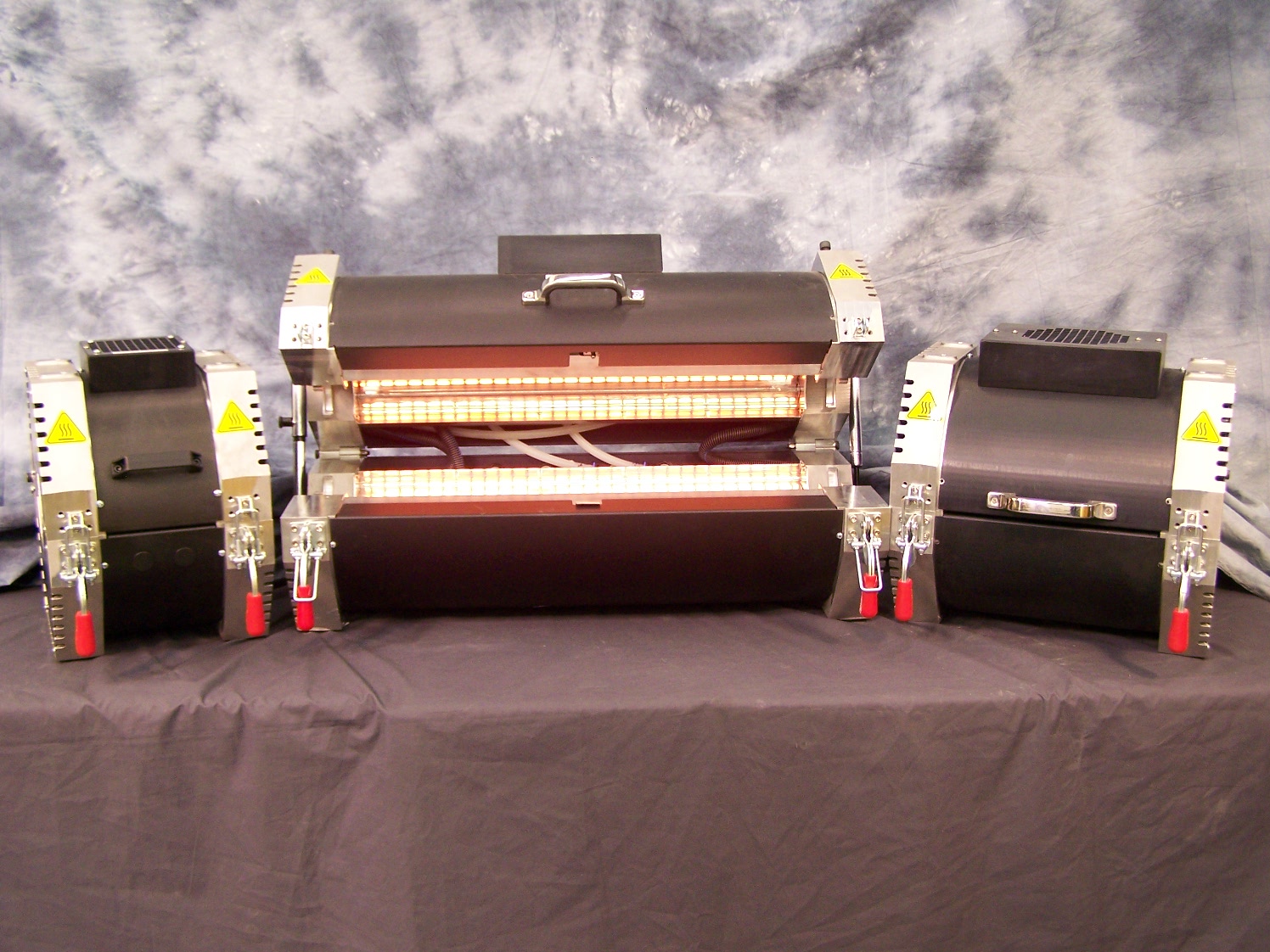

The ChamberIR heaters utilize a set of highly polished aluminum reflectors that focus the heat onto the product passing through the heater. The reflectors are water cooled and designed for continuous high temperature operation. They are manufactured using a clamshell style hinged opening that allows for easy access to the inside of the heaters for line loading and maintenance.

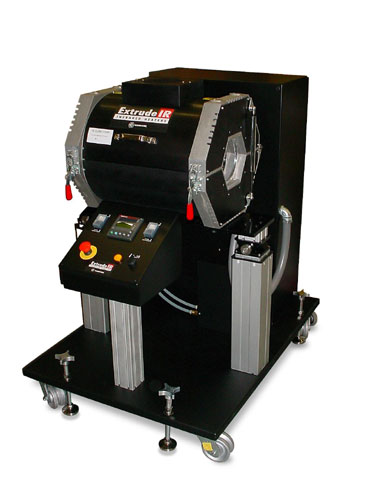

ChamberIR: ExtrudeIR 4069E
ChamberIR: ExtrudeIR 4069E
The ExtrudeIR 4069E model infrared heating system provides instantaneous infrared energy directly to extruded products including silicone, PEX-A, Rubber, and more. The system generates short-wave infrared energy that readily penetrates into...
ChamberIR: ProfileIR 4069P
ChamberIR: ProfileIR 4069P
The ProfileIR 4069P curing system uses high intensity T3 infrared lamps and polished aluminum reflectors to deliver heat precisely where it is needed to cure irregularly shaped profiles. It can instantaneously...
ChamberIR 4069
ChamberIR 4069
The ChamberIR 4069 infrared heater is designed to provide heat for products in continuous processes or test specimens. The Model 4069 heater focuses high-density infrared energy generated by T3 halogen lamps...
ChamberIR E4
ChamberIR E4
The ChamberIR E4 elliptical chamber heater is designed for rapid heating of small size continuous materials such as tubing, cable, and wire with an outer diameter less than 0.25 inch (6...
The ControlIR products range from discrete power controllers to complete control solutions for the IR heating system. The ControlIR systems are sized and scaled for the correct voltage, amperage and required power controller. Where required the air cooling and water cooling functionality is integrated to ensure safe long-life heater operation. Options can be added to improve product quality and manufacturing efficiency such as temperature control, line speed versus lamp intensity control, voltage metering and product detect. Custom features and enhancements can be provided along with the basic controls and standard options.
ControlIR: Model 935F
ControlIR: Model 935F
The Model 935F Power Control System is a complete three-phase power control solution designed specifically for our family of heaters. The standard package is equipped with the appropriate power control and...
ControlIR: Model 915F
ControlIR: Model 915F
The Model 915F Power Control System is a complete single-phase power control solution designed specifically for our family of heaters. The standard package id equipped with the appropriate power control and...
ControlIR: Model 5420
ControlIR: Model 5420
The Model 5420 ControlIR is a 15 amp power controller designed to control the voltage supplied to one of our single lamp infrared heaters. It is available for 120, 240 and...
ControlIR: Model 5620
ControlIR: Model 5620
The Model 5620 SCR Power Control solution is a stand-alone single-phase power controller designed specifically for Research Inc. heating products that has been obsoleted. The 5620 is ideal for the test...
ControlIR: Model 5820
ControlIR: Model 5820
The Model 5820 ControlIR Digital Power Controller is a versatile, easy to use yet powerful controller that provides the following features:
Braid Annealing Station
Braid Annealing Station
Typically used in the medical device industry, our IR Annealing Station provides high heat flux and custom heated geometries to anneal metal braids and prevent them from unraveling after being cut....
LineIR
LineIR
The Model 5194 LineIR Infrared line heater is designed for use in any application that requires a clean, responsive, non-contact heat source applied to a thin line on the product. The...
StripIR
StripIR
The StripIR family of heaters is a lamp and formed reflector heating system that provides even heat distribution across a defined width (dependent on model) strip. The StripIR heater uses T-3,...
SpotIR
SpotIR
The SpotIR Model 4085, 4150, and 4160 are designed for use in any application that requires clean, non-contact heat on a small target or object. Each heater contains a single lamp...
SimulateIR
SimulateIR
The SimulateIR Model 5236 space thermal simulation module can be used for efficient irradiating of test vehicle surfaces to simulate the heat generated by the sun, planet reflection, and planet radiation...
Phaser
Phaser
The Phaser infrared annealing station is portable and self contained with 4 various size heaters included to focus high intensity infrared energy precisely on an area to be annealed and not...
PanelIR
PanelIR
The PanelIR Model 4555 High Density Infrared Panel heater is a modular, panel-type heating unit that combines radiant and convection heating techniques. A forced air flow system turns waste heat into...
LampIR Quartz
LampIR Quartz
The LampIR Quartz infrared lamps produce high-density infrared energy that is focused in a variety of ways by our heaters. The lamps emit energy in the infrared region, which lies immediately...
Hi-TempIR
Hi-TempIR
The Hi-TempIR Series of electric infrared heaters are designed for applications that require very high heat flux densities in concentrated areas. The modular design of these heaters allows them to be...
CoolIR
CoolIR
The CoolIR Model C104 cooling system provides a circulating water-cooling system for small Research Inc. aluminum reflector heaters. The cooling unit has a durable plastic housing with 4 gallon (15 liter)...
